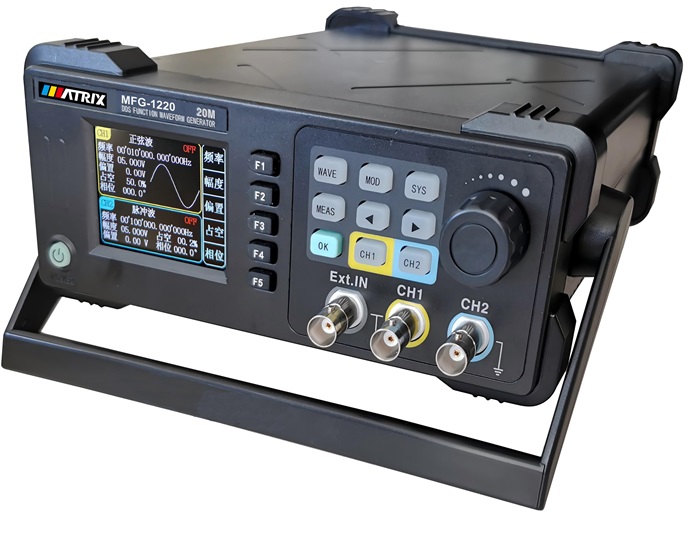

MFG-1000Series Dual Channel Function/Arbitrary Waveform Generator
- Adopting a 2.4 inch 320x240TFT LCD screen with a clear graphical interface;
- Support for Chinese and English menus;
- Dual channels are independent of each other and have phase synchronization function;
- 200MSa/S sampling rate, 13 bit vertical resolution, 8k storage depth;
- Built in 5 basic waveforms and 32 arbitrary waveforms;
- Waveform storage; Support internal storage of 50 sets of user-defined edited waveforms;
- Pulse wave output with adjustable edge time;
- Internal AM, FM, and PM modulation functions (optional for external AM, FM, and PM modulation);
- Internal/external ASK, FSK, PSK modulation functions;
- Dual channel output, with a maximum output frequency of 60M;
- Output of linear/logarithmic sweep and burst (pulse train) waveforms;
- Equipped with a 100MHz high-precision frequency meter and 32-bit counter;
- Standard USB Device interface; Optional external analog modulation interface;
- Equipped with multi-functional arbitrary waveform editing software.
Want a custom configuration?
The MFG-1000 series dual channel function/arbitrary waveform generator uses direct digital synthesis (DDS) technology to establish stable and accurate output signals. The instrument output channel is set with CH1 channel output and CH2 channel output. Both channels can output basic waveforms and arbitrary waves. You can choose one channel for various modulation waveform outputs, and the other channel for basic waveform output.
| Input voltage | AC 110~240V, 50~60Hz | |
| Consumption | <15W | |
| Display | Type | 2.4inch TFT LCD |
| Resolution | 320×240 | |
| Color | 16M color | |
| Environment | Temperature range | Operation: 10℃~+40℃ | Non-operation: -10℃~+60℃ |
| Cooling method | Natural cooling | |
| Humidity range | +35℃ below: 90% relative humidity | +35℃ ~ +40℃: ≤60% relative humidity | |
| Interface/Accessories | Interface | USB Device |
| Standard accessories | Power cord 1pc; BNC cable 1pc; | |
| Optional accessories | BNC-alligator cable; Cabinet installation kit; USB cable. | |
| Frequency Features | Sine wave | MFG-1220: 1μHz~20MHz | 1230: ~30MHz | 1240: ~40MHz | 1250: ~50MHz | 1260: ~60MHz |
| Square/Triangular wave | 1μHz ~ 15MHz | |
| Pulse wave | 100μHz ~ 6MHz | |
| Arbitrary wave | 1μHz ~ 6MHz | |
| Frequency resolution | 1μHz | |
| Frequency accuracy | ±20ppm | |
| Frequency stability | ±1ppm/3hour | |
| Waveform Characteristics | Waveform type | Sine, square, triangular, pulse, noise, arbitrary (incl. DC). 32 arbitrary, 50 user-defined. |
| Waveform length | 8192 points | |
| Waveform sample rate | 200MSa/s | |
| Waveform vertical resolution | 13 digits | |
| Sine Wave Characteristics | Harmonic suppression system | ≥45dBc (<1MHz); ≥40dBc (1MHz~20MHz) |
| Total harmonic distortion | <0.8% (20Hz ~ 20kHz, 0dBm) | |
| Square Wave Characteristics | Up / down time | <20ns |
| Overshoot | <5% | |
| Duty cycle | <100 kHz: 1%~99%; 100 kHz~5 MHz: 20%~80%; 5 MHz+: 40%~60% (0.1% res) | |
| Pulse Wave Characteristics | Pulse length | Minimum of 20ns; 1ns resolution |
| Edge jump time | Minimum of 20ns | |
| Overshoot | <5% | |
| Shake | 6ns + 0.1% of the cycle | |
| Sawtooth Wave Characteristics | Degree of linearity | ≥98% (0.01Hz~10kHz) |
| Symmetry | 0.0-100.0% (resolution 0.1%) | |
| Output Characteristics | Range of amplitude | <10MHz: 2mVpp~20Vpp; 10MHz~30MHz: 2mVpp~10Vpp; >30MHz: 2mVpp~5Vpp |
| Amplitude resolution | 1mV | |
| Accuracy of amplitude | Set value of 1% + 2mVpp (1 kHz sine wave, 0 offset, > 10mVpp) | |
| Flat amplitude | ±0.4dB (<10MHz); ±1.0dB (≥10MHz) | |
| Output impedance | 50 Ω ± 10% | |
| Protect | All signal outputs can operate within 60s under load short circuit | |
| Shifting | Output range | >0.1V: ±10Vpk (ac+dc) | ≤0.1V: ±0.250Vpk (ac+dc) |
| Bias resolution | 1mV | |
| Phase Characteristics | Phase regulation range | 0~359.9° |
| Phase resolution | 0.1° | |
| Measurement Function | Frequency meter range | 1Hz ~ 100MHz (Gate time 0.01s ~ 10s) |
| Counter range | 0 ~ 4294967295 (Hand movement) | |
| Input signal voltage | 2Vpp~20Vpp (DC or AC coupled) | |
| Pulse width / Cycle | 1ns resolution with max 20s | |
| Modulation | AM / FM / PM | Internal / external VCO. Mod freq: 2mHz~20kHz. |
| ASK / FSK / PSK | Internal / external. Mod rate: 2mHz~1MHz. | |
| Scan Frequency | Scan type / time | Linear/logarithmic. 1ms ~ 999.999s. Forward/reverse/round-trip. |
| Catchment (Burst) | Pulse count | 1~1048575 or unlimited, gated. Intercycle: 1μs~500s. |
| Analulated Modulation Input | Input impedance / Range | 1M Ω / ±2.5V ac+dc (Optional) |
