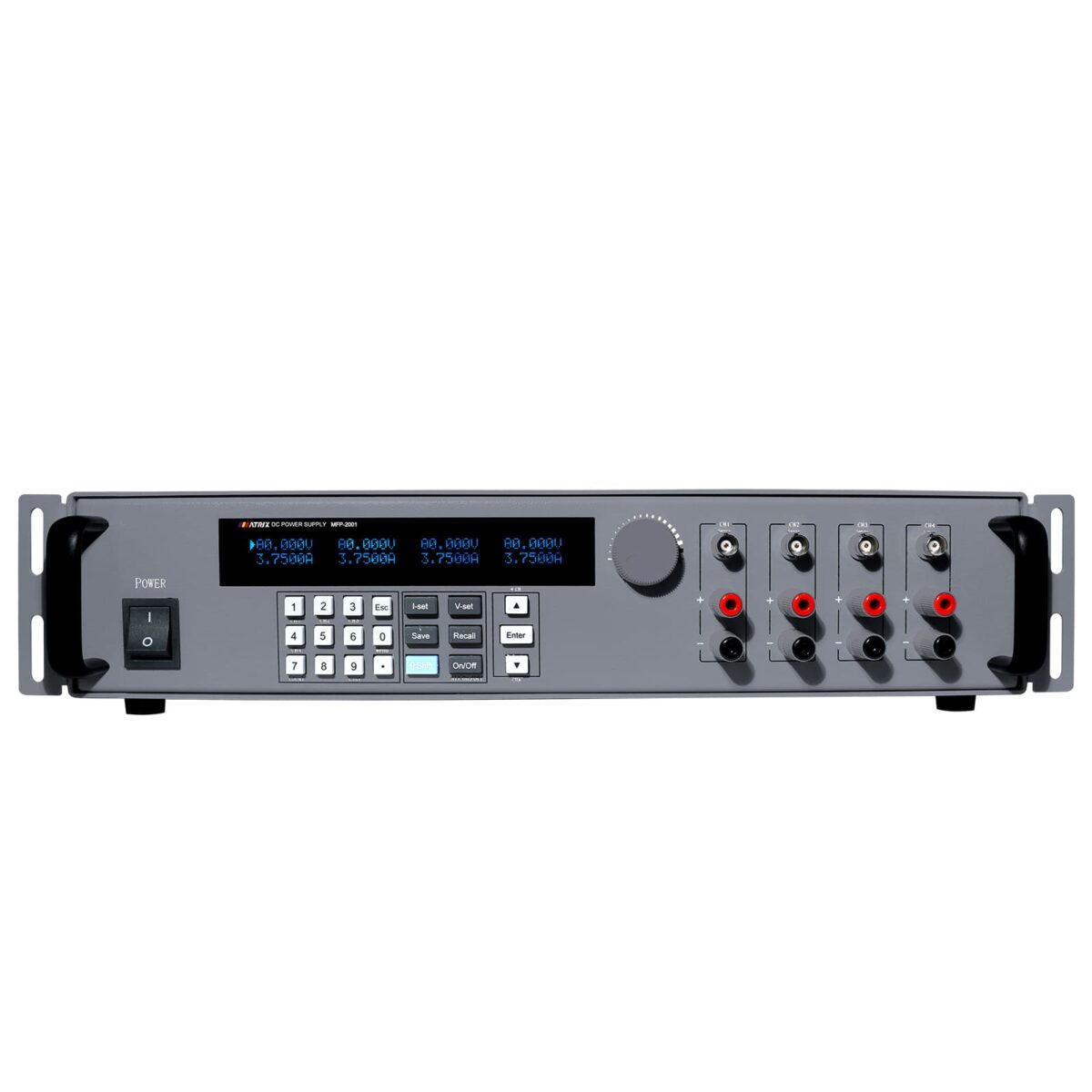

MFP-2000Series 4-channel Programmable DC Power Supply

The MFP-2000 Series are 4-channel programmable DC power supplies, with output voltage ranging from 0-32V to 0-150V and current from 0-2A to 0-10A. Single-channel power ranges from 192W to 320W, making them suitable for laboratories, automated testing systems, and other scenarios, backed by a 3-year warranty. A core highlight is the independent isolation of the 4 channels, with high resolution of 1mV/0.1mA. Each channel is independently adjustable and isolated, supporting arbitrary combinations of different specifications, and the 4-in-1 design saves space. They support simultaneous display of voltage and current for all four channels. Remote voltage compensation is available to eliminate line voltage drop. Rich functions include OVP/OCP/OTP protection, 9 groups of parameter storage and recall, and List sequence testing (up to 30 steps with 99999 cycles). A standard RS232 interface is included, with optional USB, RS485, and LAN, compatible with SCPI and Modbus protocols. Equipped with intelligent fan temperature control, they have dimensions of 440×90×340mm and a net weight of 9kg, providing an efficient power solution for multi-device synchronous testing.
