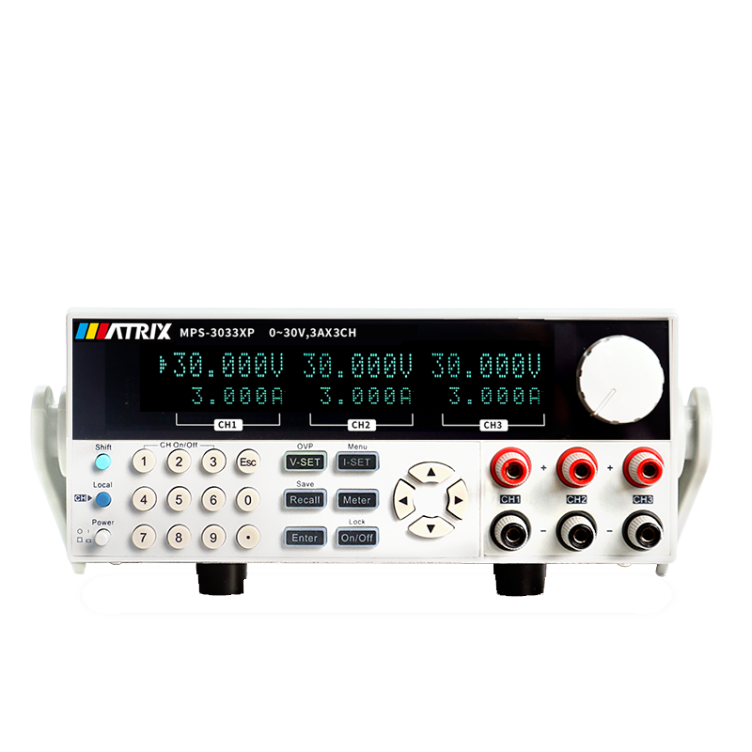

MPS-XPSeries 3-Channel Programmable Power Supply
- Output voltage: 0~30/60V * 3CH; Output current: 0~3/6A * 3CH
- All three channels of voltage are continuously adjustable from 0-30V (0-60V), one device serves as three
- Each channel has an independent output switch for easy control
- Supports series, parallel, and synchronous modes; CH1 and CH2 can be combined to expand to higher power
- Output terminals on both front and rear panels for convenient use on desktop and in cabinet
Want a custom configuration?
The MPS-XP Series (including MPS-3033XP, MPS-3063XP, MPS-6033XP) are true 3-channel programmable power supplies with better consistency in 3-channel output voltages (e.g., MPS-6033XP offers 0-60V for all 3 channels), current from 0-3A to 0-6A, ideal for high-requirement synchronous testing. Core highlights include high precision and wide range: voltage resolution 1mV, current resolution 1mA, load regulation ≤0.01%+3mV, ripple ≤2mVrms, ensuring stable output. Supporting series/parallel and synchronous modes, CH1 and CH2 can combine to expand power for stringent testing needs. Equipped with 40 groups of parameter storage and timed output (0.1-99999.9 seconds), a VFD display clearly shows 3-channel data. Standard RS232/USB communication compatible with SCPI/Modbus facilitates remote control. An intelligent fan controls temperature; dimensions are 255×110×475mm with a 3-year warranty, suitable for precision electronic R&D and high-end testing systems.
| Model | Voltage | Current | Power |
|---|---|---|---|
| MPS-3033XP | 0~30V*3CH | 0~3A*3CH | 90W*3CH |
| MPS-3063XP | 0~30V*3CH | 0~6A*3CH | 180W*3CH |
| MPS-6033XP | 0~60V*3CH | 0~3A*3CH | 180W*3CH |
| Regulation | Load / Line regulation rate | Voltage: ≤0.01%+3mV | Current: ≤0.01%+3mA |
| Resolution | Setting / Readback resolution | Voltage: 1mV | Current: 1mA |
| Accuracy | Set / Readback accuracy | Voltage: ≤0.03%+10mV | Current: ≤0.1%+8mA |
| Signal Integrity | Ripple and noise | Voltage: ≤2mVrms | Current: ≤5mArms |
| Temperature | Temp coefficient (0~40℃) | Voltage: ≤0.03%+10mV | Current: ≤0.1%+8mA |
| Features | Memory / Timer | 40 groups / 0.1s~3600s |
| Physical | Interface | RS232, USB |
| Size (W*H*D) / Net Weight | 255*110*470 mm / 11 kg |
