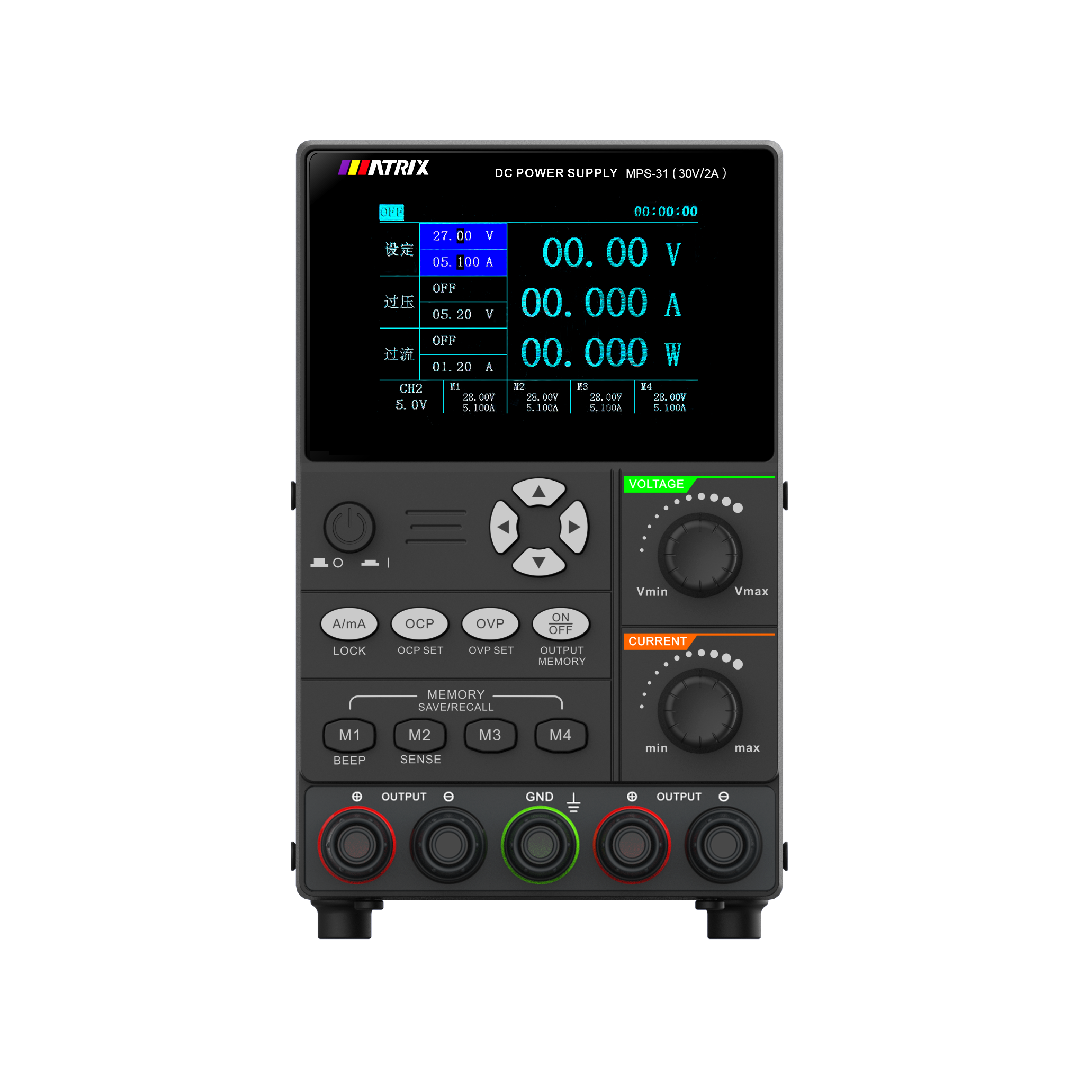

MPS-30Series Storage-Type Linear DC Power Supply
- Voltage range: 0 – 60V, current range: 0 – 30A, power: 360W
- Panel lock function
- Output switch control
- Switching between high and low current levels
- Color screen display, multiple parameters are clear at a glance
- 4 sets of fast storage and retrieval functions
Want a custom configuration?
The newly launched MPS – 30 Series Two – Channel DC Programmable Power Supply has a display resolution of 10mV/1mA. CH2 offers 1.8V/2.5V/3.3V/5V@3A, with panel lock, output switch control, high/low current switching, and 4 sets of fast storage/retrieval. The color screen ensures clear parameter viewing. Models like MPS – 31 to MPS – 39 have rated output voltages 0 – 30V to 0 – 100V, currents 0 – 0.5A to 0 – 10A, power 50W to 300W, precise regulation, and low ripple. Ideal for production line tests, lab work, electronic repair, and automated equipment integration.
| Model | Voltage | Current | Power |
|---|---|---|---|
| MPS-31 | 0~30V | 0~2A | 60W |
| MPS-32 | 0~30V | 0~4A | 120W |
| MPS-33 | 0~30V | 0~6A | 180W |
| MPS-34 | 0~30V | 0~8A | 240W |
| MPS-35 | 0~30V | 0~10A | 300W |
| MPS-36 | 0~60V | 0~2A | 120W |
| MPS-37 | 0~60V | 0~4A | 240W |
| MPS-38 | 0~80V | 0~2A | 160W |
| MPS-39 | 0~100V | 0~0.5A | 50W |
| Regulation | Load regulation | Voltage: 0.05%+5mV/8mV | Current: 0.1%+5mA/8mA |
| Line regulation rate | Voltage: 0.05%+5mV/8mV/10mV | Current: 0.1%+5mA/8mA | |
| Resolution | Setting resolution | Voltage: 10mV | Current: 1mA |
| Read back resolution | Voltage: 10mV | Current: 1mA | |
| Accuracy | Setting accuracy | Voltage: ≤0.1%+2-3digits | Current: ≤0.2%+3-6digits (25℃±5℃) |
| Read back accuracy | Voltage: ≤0.1%+2-3digits | Current: ≤0.2%+3-6digits (25℃±5℃) | |
| Signal Integrity | Ripple and noise | Voltage: 3-10mVrms | Current: 3-6mArms |
