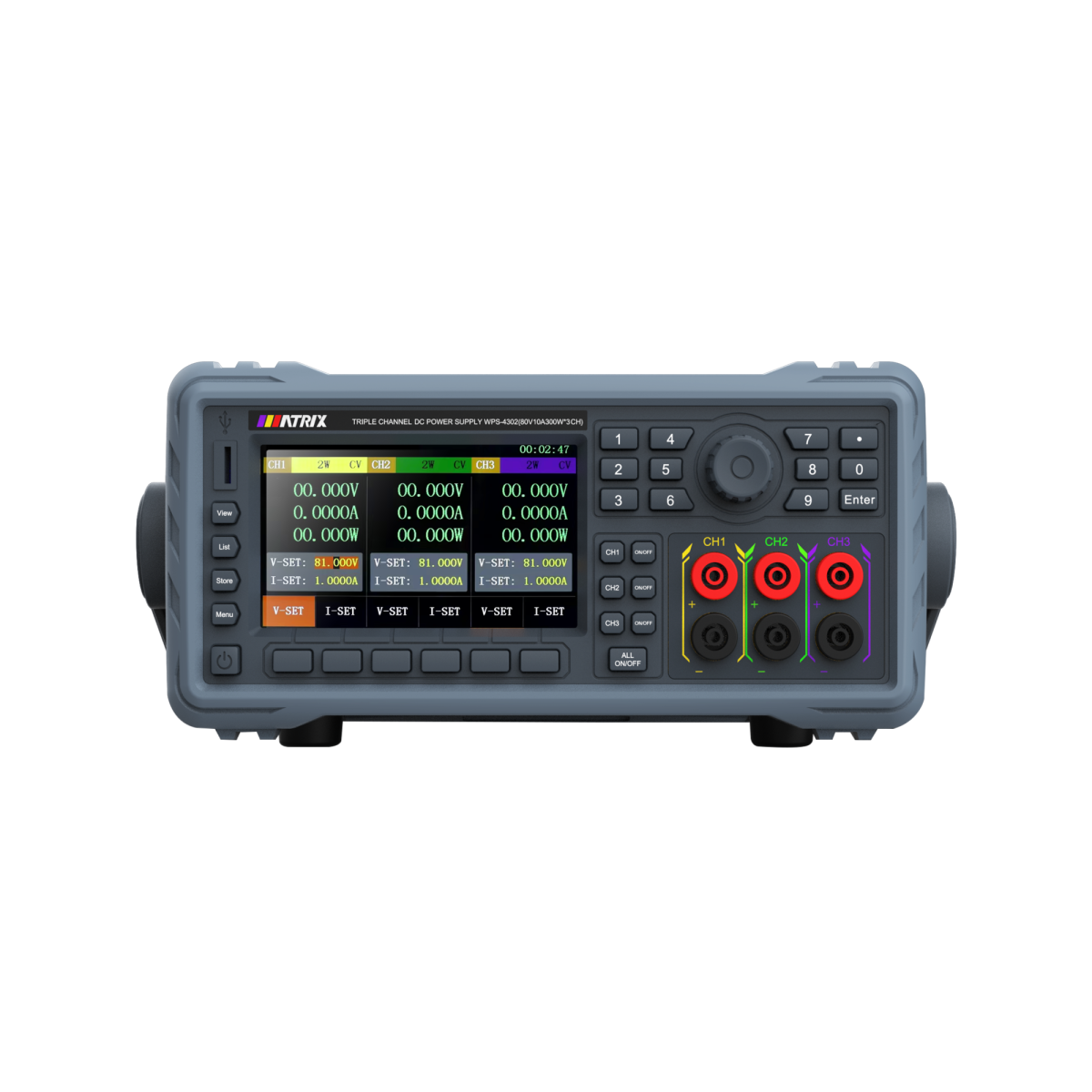

The WPS-4300 series of 3-channel DC power supplies includes models WPS-4301, WPS-4302, and WPS-4303. With a rated input voltage of AC220V/110V±10%, their output specifications are 0-80V×3 (0-6A×3, 200W×3), 0-80V×3 (0-10A×3, 300W×3), and 0-150V×3 (0-5A×3, 300W×3) respectively, making them suitable for scenarios such as laboratory research and development, and production line testing. Core highlights: It supports independent switch control for the three channels, with a high resolution of 1mV/0.1mA ensuring precise adjustment; it is equipped with List editing and output functions as well as remote voltage compensation to eliminate line loss and ensure accuracy; the load and line regulation are ≤0.02%+8mV for voltage and ≤0.02%+5mA for current, with ripple voltage <8mVrms and ripple current <5mArms; both front and rear panels can output to adapt to various scenarios, with standard RS-232/RS-485/USB interfaces and optional LAN ports; the device dimensions are 230×110×395mm and the net weight is 5kg, balancing performance and space efficiency.
