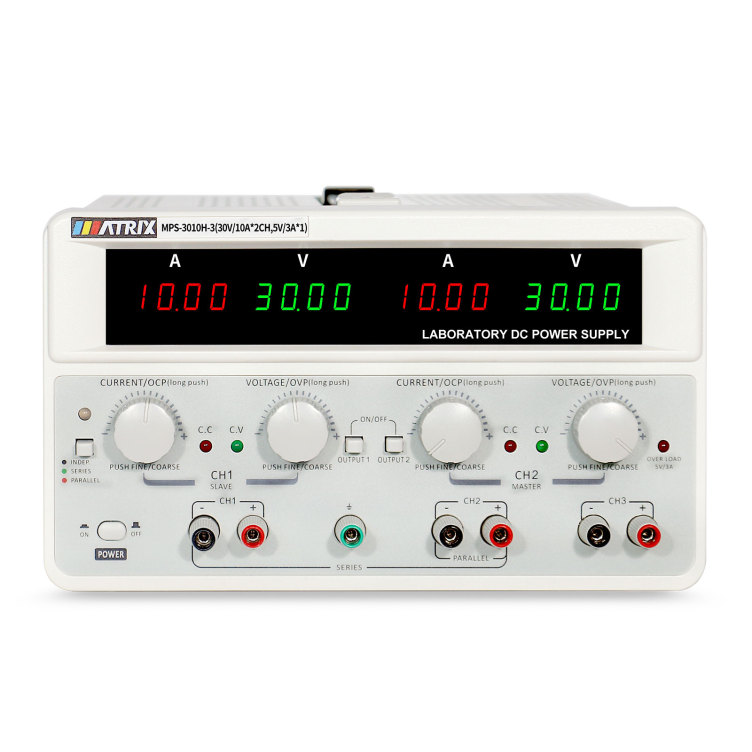

MPS-H-3Series 3-Channel Linear DC Power Supply

The MPS-H-3 Series are high-quality linear DC power supplies, including models from MPS-3003H-3 to MPS-6005H-3. CH1 and CH2 offer output voltage ranging from 0~30V to 0~60V and current from 0~3A to 0~10A, while CH3 provides a fixed 5V/3A output. Suitable for laboratories, electronic R&D, and similar scenarios, they come with a 3-year warranty.Channel 1 and Channel 2 can be independently controlled via switches and support one-click series/parallel configuration. In series or parallel mode, voltage and current are displayed intuitively, meeting diverse power supply needs. The device can save the last output data and status for convenient reuse in subsequent operations.Equipped with over-current protection, it supports constant voltage (CV) and constant current (CC) modes, ensuring stable operation without the need for external accessories. Internally, switches enable automatic series or parallel connection between Channel 1 and Channel 2, simplifying operation. Voltage values can be easily set via multi-turn potentiometers, ensuring smooth adjustment.
