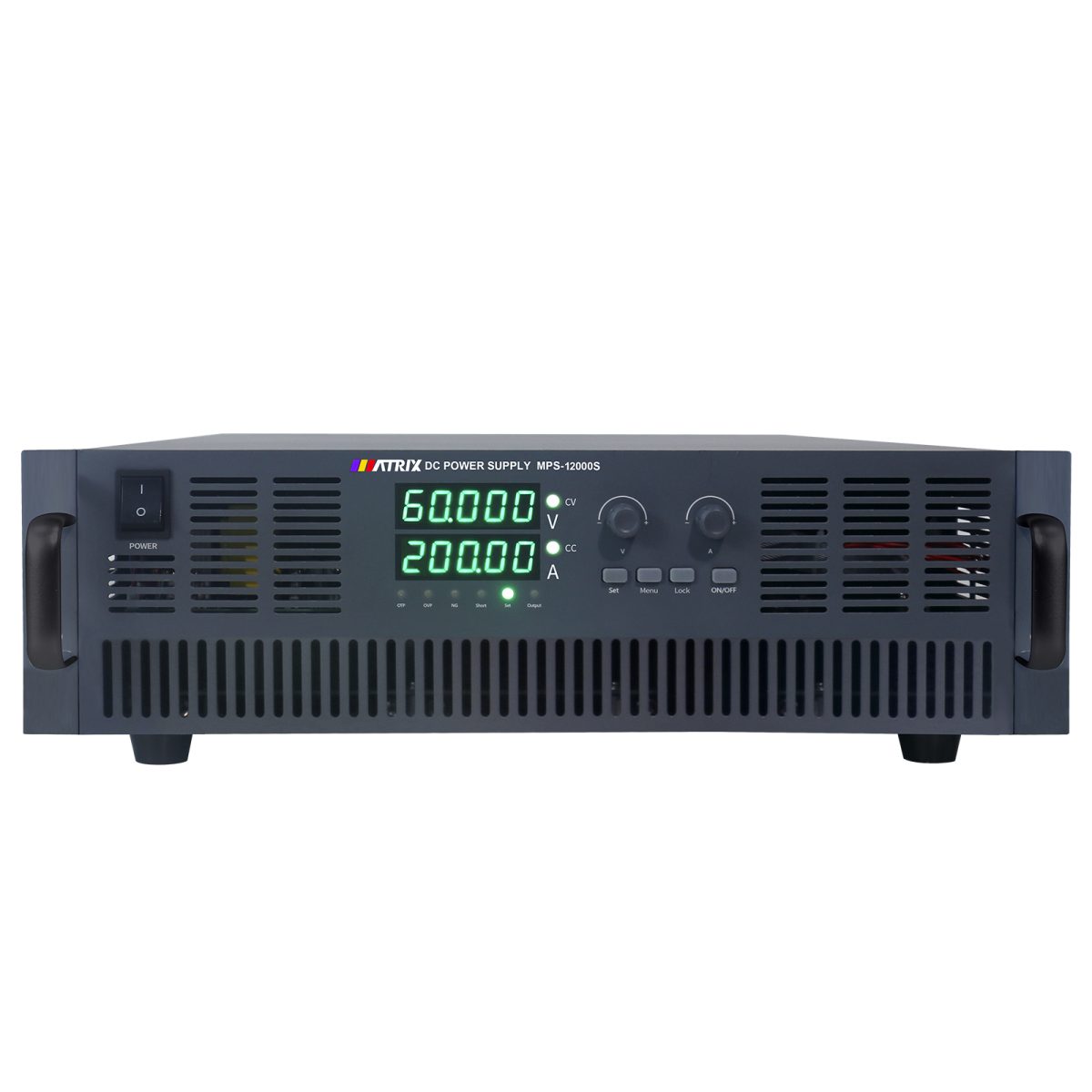

MPS-12000SSeries Programmable DC Power Supply

Output voltage: 0-600V, output current: 0-400A, single-unit power: 12000W
Simultaneous five digit display of voltage and current, precise and easy to use
Adopting PWM modulation and high gain amplification circuit design, stable and reliable
The panel has preset buttons that can preset voltage and current values
Key components are imported to ensure long-term full load operation

Want a custom configuration?

The MPS-12000S Series are single-channel high-power DC power supplies, including MPS-12000S-30-400 and MPS-12000S-60-200. Output voltages: 0-30V to 0-600V; currents: 0-400A to 0-20A; power: 12000W. Adopting PWM modulation, they feature a 5-digit display, preset buttons, full protection, and a keypad lock. Imported components ensure stability; remote voltage compensation is supported. Standard interfaces: RS-232/RS-485/SENSE; optional analog interfaces. Input: Three-phase AC380V±10% (50Hz). Ripple: ≤0.2% FS+50mVrms; dynamic response: ≤5ms. Dimensions: 430×560×132mm; weight: 26KG. Ideal for high-power industrial testing and large equipment. Equipped with intelligent temperature-controlled cooling, efficient radiators, and automatic parameter saving.

Model	Voltage	Current	Power
MPS-12000S-30-400	0-30.000V	0-400.00A	12000W
MPS-12000S-60-200	0-60.000V	0-200.00A	12000W
MPS-12000S-150-80	0-150.00V	0-80.000A	12000W
MPS-12000S-300-40	0-300.00V	0-40.000A	12000W
MPS-12000S-600-20	0-600.00V	0-20.000A	12000W

Base Specification	AC input	Three-phase AC380V±10%, 50Hz
Regulation	Load regulation	Voltage: ≤0.1%F.S+0.1%F.S \| Current: ≤0.1%F.S+0.1%F.S
Accuracy	Setting / Readback value	Voltage&Current ≤0.1%F.S+0.1%F.S
Signal Integrity	Ripple (20Hz-20MHz)	Vrms ≤ 0.2%F.S+50mV
Signal Integrity	Dynamic response time	≤5mS (10% - 90% load)
Display	Display method / resolution	4 1/2 digit LED / V: 0.001V-0.1V, I: 0.001A-0.1A
Physical	Heat dissipation	PWM speed regulating fan, air-cooled
Physical	Size (WDH) / Weight	430×560×132 mm / 26KG
