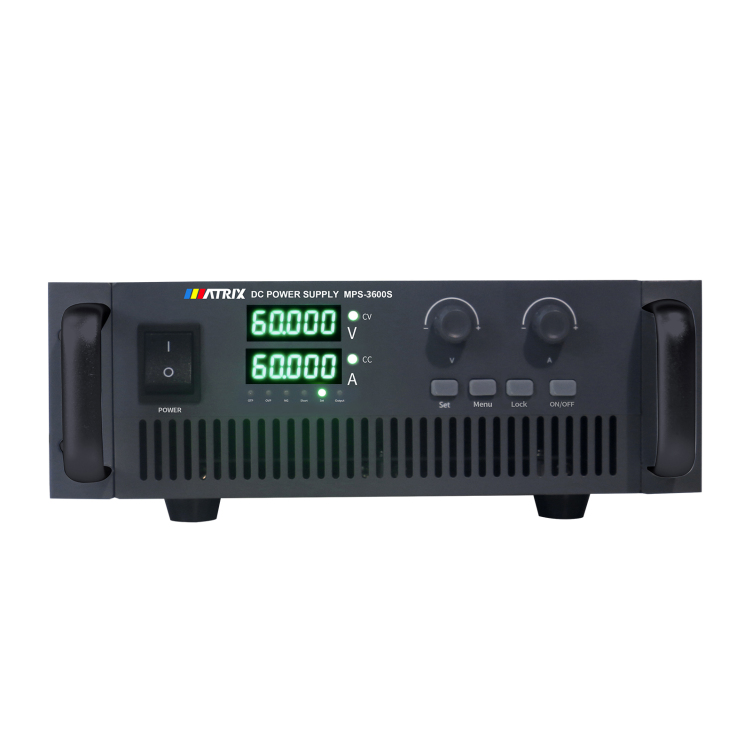

MPS-3600SSeries Programmable DC Power Supply
- Output voltage: 0-600V, output current: 0-120A, single-unit power: 3600W
- Simultaneous five digit display of voltage and current, precise and easy to use
- Adopting PWM modulation and high gain amplification circuit design, stable and reliable
- The panel has preset buttons that can preset voltage and current values
- Key components are imported to ensure long-term full load operation
Want a custom configuration?
The MPS-3600S Series are single-channel high-power DC power supplies, featuring models such as MPS-3600S-30-120 and MPS-3600S-60-60. Output voltages range from 0-30V to 0-600V, currents from 0-120A to 0-6A, with a uniform power of 3600W. Adopting PWM modulation technology, they feature a 5-digit simultaneous display of voltage and current, and front-panel preset buttons for efficient parameter presetting. Comprehensive protection (OVP/OCP/OTP/short-circuit protection) and a keypad lock prevent misoperation, while imported components ensure long-term stable performance. Remote voltage compensation is supported, with standard RS-232/RS-485/SENSE interfaces and optional analog signal interfaces. Input: Single-phase AC220V±10% (50Hz). Ripple: ≤0.2% FS+50mVrms; dynamic response: ≤5ms. Dimensions: 215×400×88mm; weight: 7.5KG. Ideal for industrial testing and high-power equipment power supply. It also includes an intelligent temperature-controlled fan, high-density radiators for efficient cooling, and a memory function to save parameters automatically.
| Model | Voltage | Current | Power |
|---|---|---|---|
| MPS-3600S-30-120 | 0-30.000V | 0-120.00A | 3600W |
| MPS-3600S-60-60 | 0-60.000V | 0-60.000A | 3600W |
| MPS-3600S-100-36 | 0-100.00V | 0-36.000A | 3600W |
| MPS-3600S-150-24 | 0-150.00V | 0-24.000A | 3600W |
| MPS-3600S-200-18 | 0-200.00V | 0-18.000A | 3600W |
| MPS-3600S-300-12 | 0-300.00V | 0-12.000A | 3600W |
| MPS-3600S-600-6 | 0-600.00V | 0-6.0000A | 3600W |
| Base Specification | AC input | Single phase AC220V±10%，50Hz |
| Regulation | Load regulation | Voltage: ≤0.1%F.S+0.1%F.S | Current: ≤0.1%F.S+0.1%F.S |
| Accuracy | Setting / Readback value | Voltage&Current ≤0.1%F.S+0.1%F.S |
| Signal Integrity | Ripple (20Hz-20MHz) | Vrms ≤ 0.2%F.S+50mV |
| Dynamic response time | ≤5mS (10%-90% load) | |
| Display | Display method / resolution | 4 1/2 digit LED / V: 0.001V-0.1V, I: 0.001A-0.1A |
| Physical | Heat dissipation | PWM speed regulating fan, air-cooled |
| Size (W*D*H) / Weight | 215×400×88 mm / 7.5KG |
