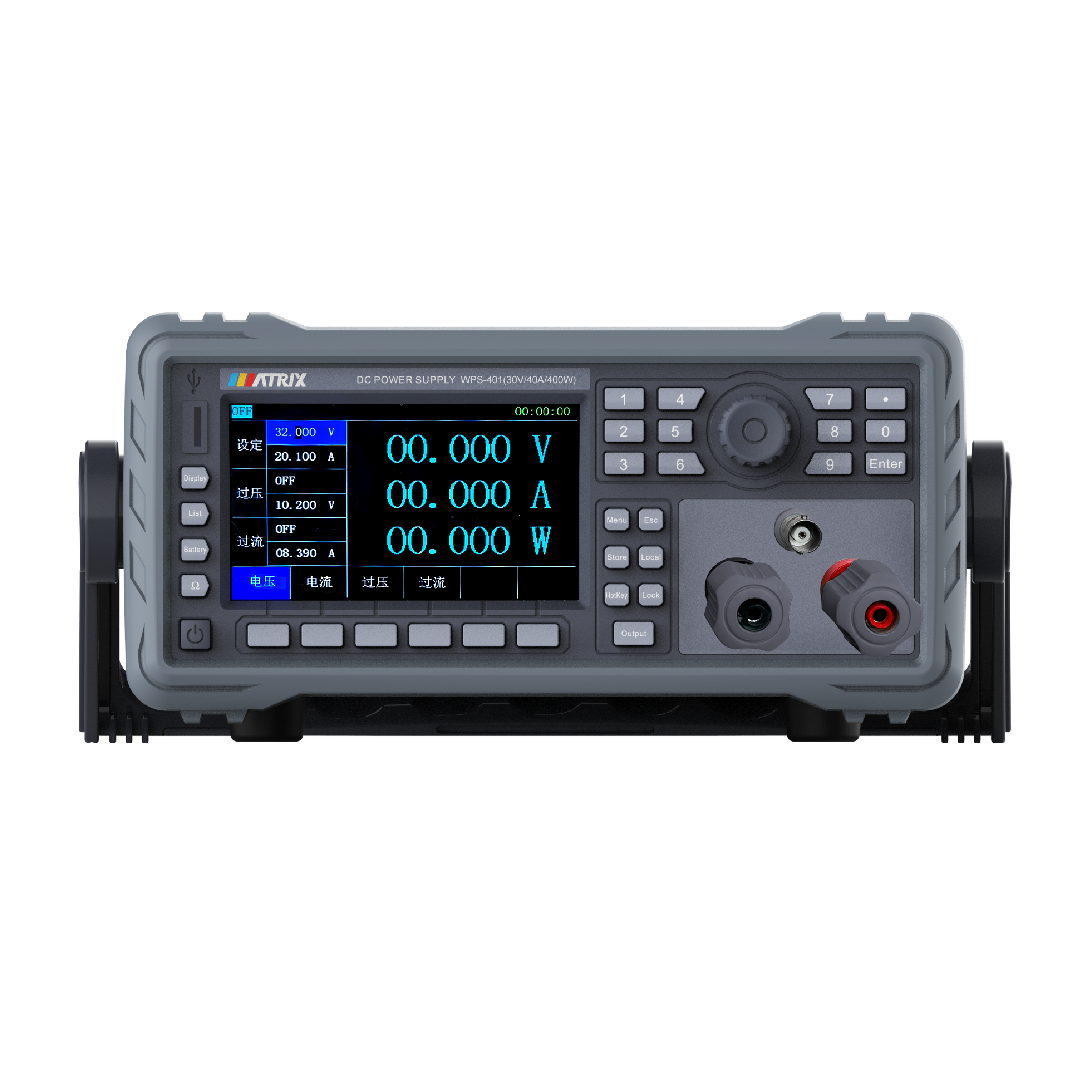

WPS-400Programmable Wide-Range DC Power Supply

Voltage range: 0 – 150V, current range: 0 – 60A, power: 400W or 900W
Voltage compensation function ensures high precision
Resistance Test
Rising slope setting
List sequence output

Want a custom configuration?

The newly launched WPS – 400 Series Single – Channel DC Power Supply boasts excellent performance. It has a voltage range from 0 – 30V to 0 – 150V, a current range from 0 – 10A to 0 – 60A, and power options of 400W or 900W. The rated input voltage is AC 220V ± 10%, and it adopts a switching power supply, with excellent load and power regulation rates. The resolution and accuracy of set values and read – back values are high. It has good adaptability to operating and storage temperatures. The size is 230×110×408mm, and the net weight is 4.5kg. Moreover, it features a high display accuracy of 1mV for voltage and 1mA for current. Functions such as resistance test and voltage compensation ensure accuracy. Settings for rising slope and list sequence output meet diverse needs. Key locking and CC/CV priority settings ensure safety and adaptability, providing reliable support for various power – consuming scenarios.

Model	Voltage	Current	Power
WPS-401	0~30V	0~40A	400W
WPS-402	0~30V	0~60A	900W
WPS-403	0~40V	0~40A	400W
WPS-404	0~40V	0~40A	900W
WPS-405	0~60V	0~20A	400W
WPS-406	0~60V	0~30A	900W
WPS-407	0~80V	0~20A	400W
WPS-408	0~80V	0~20A	900W
WPS-409	0~150V	0~10A	400W
WPS-410	0~150V	0~15A	900W

Base Specification	Rated input voltage / method	AC 220V±10% / Switch power supply
Regulation	Load regulation rate	Voltage: ≤0.1%+20mV \| Current: ≤0.1%+5mA
Regulation	Power regulation rate	Voltage: ≤0.1%+20mV \| Current: ≤0.1%+5mA
Resolution	Set / Read back resolution	Voltage: 1mV \| Current: 1mA
Accuracy	Set / Read back accuracy	Voltage: ≤0.1%+10mV \| Current: ≤0.3%+10mA
Environment	Temperature Range	Operating: 0 to 40℃≤85 R.H. / Storage: -15 to 70℃≤85 R.H.
Physical	Size (W * H * D) / Net weight	230110408 mm / 4.5kg
