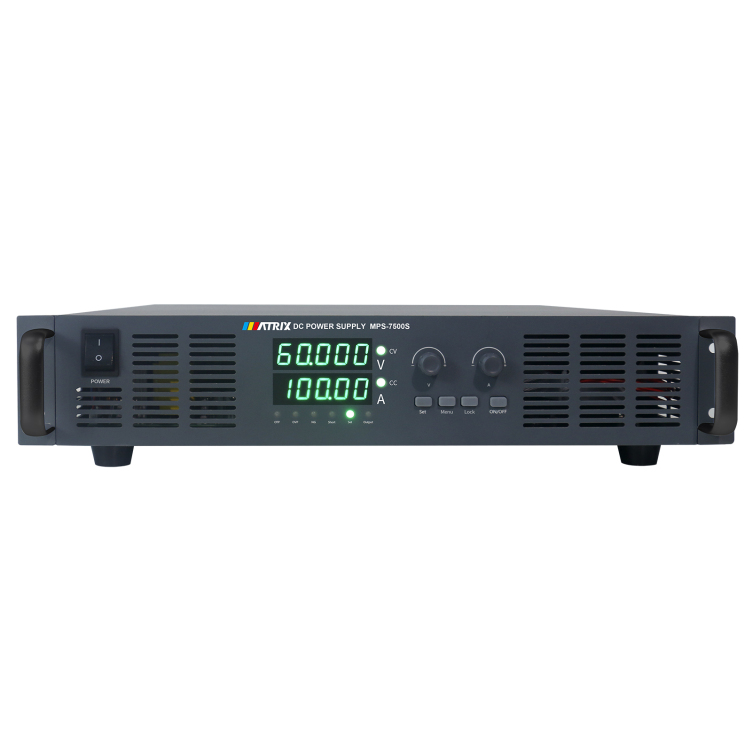

MPS-7500SSeries Programmable DC Power Supply
- Output voltage: 0-1500V, output current: 0-250A, single-unit power: 7500W
- Simultaneous five digit display of voltage and current, precise and easy to use
- Adopting PWM modulation and high gain amplification circuit design, stable and reliable
- The panel has preset buttons that can preset voltage and current values
- Key components are imported to ensure long-term full load operation
Want a custom configuration?
The MPS-7500S Series are single-channel high-power DC power supplies, including MPS-7500S-30-250 and MPS-7500S-60-125. Output voltages range from 0-30V to 0-1500V, currents from 0-250A to 0-5A (some models: 7200W; others: 7500W). Using PWM modulation, they feature a 5-digit display, preset buttons, and full protection (OVP/OCP/OTP/short-circuit) with a keypad lock. Imported components ensure stability; remote voltage compensation is supported. Standard interfaces: RS-232/RS-485/SENSE; optional analog interfaces. Input: Three-phase AC380V±10% (50Hz). Ripple: ≤0.2% FS+50mVrms; dynamic response: ≤5ms. Dimensions: 430×500×88mm; weight: 16KG. Ideal for high-power industrial testing and heavy-duty equipment. Equipped with intelligent temperature-controlled cooling, efficient radiators, and automatic parameter saving.
| Model | Voltage | Current | Power |
|---|---|---|---|
| MPS-7500S-30-250 | 0-30.000V | 0-250.00A | 7500W |
| MPS-7500S-60-125 | 0-60.000V | 0-125.00A | 7500W |
| MPS-7500S-100-75 | 0-100.00V | 0-75.000A | 7500W |
| MPS-7500S-150-50 | 0-150.00V | 0-50.000A | 7500W |
| MPS-7500S-200-36 | 0-200.00V | 0-36.000A | 7200W |
| MPS-7500S-300-25 | 0-300.00V | 0-25.000A | 7500W |
| MPS-7500S-600-12 | 0-600.00V | 0-12.000A | 7200W |
| MPS-7500S-1500-5 | 0-1500.0V | 0-5.0000A | 7500W |
| Base Specification | AC input | Three-phase AC380V±10%，50Hz |
| Regulation | Load regulation | Voltage: ≤0.1%F.S+0.1%F.S | Current: ≤0.1%F.S+0.1%F.S |
| Accuracy | Setting / Readback value | Voltage&Current ≤0.1%F.S+0.1%F.S |
| Signal Integrity | Ripple (20Hz-20MHz) | Vrms ≤ 0.2%F.S+50mV |
| Dynamic response time | ≤5mS (10%-90% load) | |
| Display | Display method / resolution | 4 1/2 digit LED / V: 0.001V-0.1V, I: 0.001A-0.1A |
| Physical | Heat dissipation | PWM speed regulating fan, air-cooled |
| Size (W*D*H) / Weight | 430×500×88 mm / 16KG |
