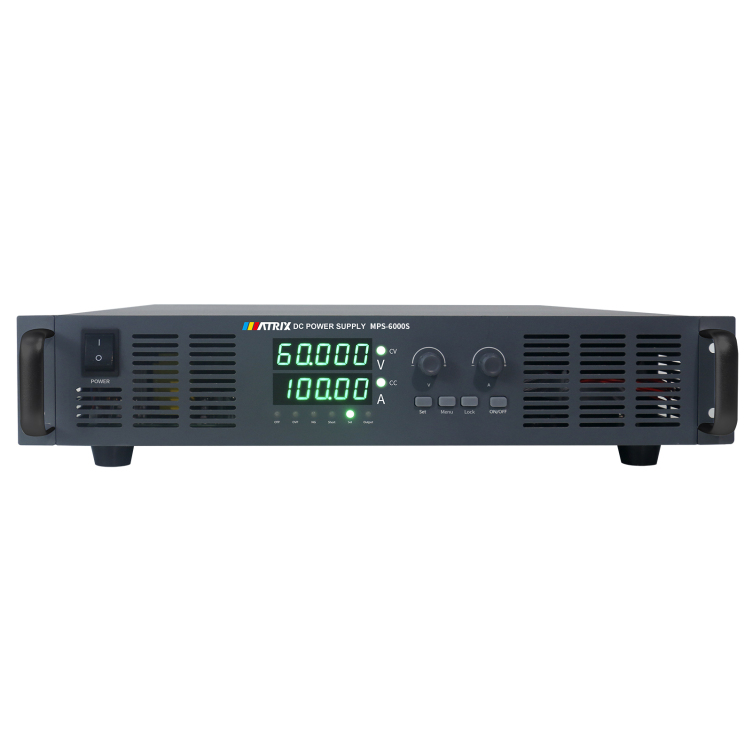

MPS-6000SSeries Programmable DC Power Supply
- Output voltage: 0-1200V, output current: 0-200A, single-unit power: 6000W
- Simultaneous five digit display of voltage and current, precise and easy to use
- Adopting PWM modulation and high gain amplification circuit design, stable and reliable
- The panel has preset buttons that can preset voltage and current values
- Key components are imported to ensure long-term full load operation
Want a custom configuration?
The MPS-6000S Series are single-channel high-power DC power supplies, covering models like MPS-6000S-30-200 and MPS-6000S-60-100. Output voltages span 0-30V to 0-1200V, currents 0-200A to 0-5A. Using PWM modulation and high-gain amplifier circuits, they offer a 5-digit simultaneous voltage/current display and front-panel preset buttons for quick parameter setting. Protections include OVP/OCP/OTP/short-circuit safeguards and a keypad lock; imported components ensure reliable full-load operation. Remote voltage compensation is supported, with standard RS-232/RS-485/SENSE interfaces and optional analog interfaces. Input: Single-phase AC220V±10% (50Hz). Ripple: ≤0.2% FS+50mVrms; dynamic response: ≤5ms. Dimensions: 430×500×88mm; weight: 16KG. Suitable for high-power industrial testing and large equipment power supply. Enhanced by intelligent temperature-controlled cooling, efficient radiators, and a parameter memory function.
| Model | Voltage | Current | Power |
|---|---|---|---|
| MPS-6000S-30-200 | 0-30.000V | 0-200.00A | 6000W |
| MPS-6000S-60-100 | 0-60.000V | 0-100.00A | 6000W |
| MPS-6000S-100-60 | 0-100.00V | 0-60.000A | 6000W |
| MPS-6000S-150-40 | 0-150.00V | 0-40.000A | 6000W |
| MPS-6000S-200-30 | 0-200.00V | 0-30.000A | 6000W |
| MPS-6000S-300-20 | 0-300.00V | 0-20.000A | 6000W |
| MPS-6000S-600-10 | 0-600.00V | 0-10.000A | 6000W |
| MPS-6000S-1000-6 | 0-1000.0V | 0-6.0000A | 6000W |
| MPS-6000S-1200-5 | 0-1200.0V | 0-5.0000A | 6000W |
| Base Specification | AC input | Uniphase: AC220V±10%，50Hz |
| Regulation | Load regulation | Voltage: ≤0.1%F.S+0.1%F.S | Current: ≤0.1%F.S+0.1%F.S |
| Accuracy | Setting / Readback value | Voltage&Current ≤0.1%F.S+0.1%F.S |
| Signal Integrity | Ripple (20Hz-20MHz) | Vrms ≤ 0.2%F.S+50mV |
| Dynamic response time | ≤5mS (10%-90% load) | |
| Display | Display method / resolution | 4 1/2 digit LED / V: 0.001V-0.1V, I: 0.001A-0.1A |
| Physical | Heat dissipation | PWM speed regulating fan, air-cooled |
| Size (W*D*H) / Weight | 430×500×88 mm / 16KG |
