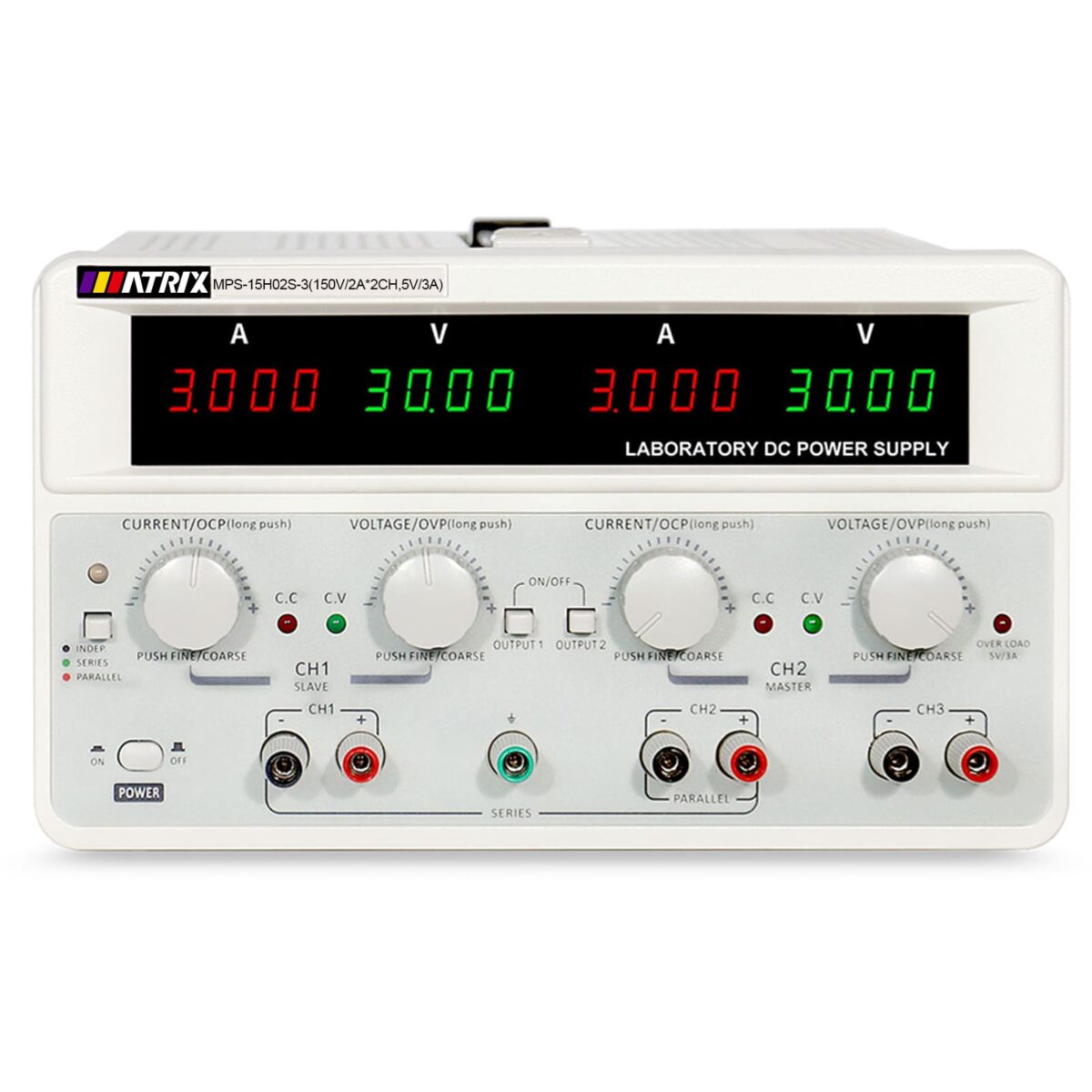

MPS-S-3Series
- Output range: CH1, CH2: 0~150V; Output current range: CH1, CH2: 0~10A / CH3: 5V/3A (fixed)
- CH1 and CH2 are equipped with independent output switches for convenient use
- Current can be easily preset without short-circuiting, revolutionizing your operation experience
- Equipped with a power-on soft-start circuit design, featuring low inrush current and high practicality
- One-click series/parallel setting, directly displaying the voltage and current values after series/parallel connection for intuitive reading
Want a custom configuration?
The MPS-S-3 Series 3-channel DC power supplies include models such as MPS-3206S-3, MPS-3210S-3, MPS-6005S-3, MPS-8003S-3, and MPS-15H02S-3. Among them, CH1 and CH2 allow independent output adjustment: different models have rated voltage ranges of 0~32V, 0~60V, 0~80V, and 0~150V, with rated current ranges of 0~2A, 0~3A, 0~5A, 0~6A, and 0~10A; CH3 provides a fixed 5V/3A output.The series features high-precision display (voltage resolution 10mV, current resolution 1mA), one-click series/parallel setting, 110V/220V input voltage switching, power-on state memory, buzzer switch, one-click factory reset, OVP/OCP protection, and a start-up slow-start circuit.In terms of performance, the voltage load regulation ranges from <0.1%+5mV to <0.1%+10mV, and the current load regulation ranges from <0.2%+3mA to <0.2%+5mA; the voltage line regulation ranges from <0.1%+5mV to <0.1%+10mV; the voltage ripple and noise is 10mVrms.It supports independent output switch control and current preset (no short-circuit required), with standard or optional RS-232, RS-485, and USB communication interfaces. The operating environment temperature is 0~40℃ (≤80% RH), and the storage environment temperature is -15~70℃ (≤80% RH). The dimensions are approximately 219×95×300mm or 250×150×268mm, with a weight of 4.5kg, and a 3-year warranty is provided.
| Model | Voltage | Current | Power |
|---|---|---|---|
| MPS-3206S-3 | 0~32V (CH1/CH2) | 0~6A (CH1/CH2) | 399W |
| MPS-3210S-3 | 0~32V (CH1/CH2) | 0~10A (CH1/CH2) | 655W |
| MPS-6005S-3 | 0~60V (CH1/CH2) | 0~5A (CH1/CH2) | 615W |
| MPS-8003S-3 | 0~80V (CH1/CH2) | 0~3A (CH1/CH2) | 495W |
| MPS-15H02S-3 | 0~150V (CH1/CH2) | 0~2A (CH1/CH2) | 615W |
| Output | CH3 Fixed Output | 5V / 3A (for all models) |
| Regulation | Load regulation rate | Voltage: <0.1%+10mV | Current: <0.2%+5mA |
| Line regulation rate | Voltage: <0.1%+10mV | Current: <0.2%+5mA | |
| Accuracy | Set / Readback accuracy | Voltage: ≤0.1%+2digits | Current: ≤0.2%+5mA |
| Resolution | Readback resolution | Voltage: 10mV | Current: 1mA |
| Signal Integrity | Ripple and Noise | Voltage: ≤10mVrms | Current: ≤5mArms |
| Protection | OVP / OCP Range limit | Max Voltage ±0.2% / Max Current ±0.2% |
| Environment | Operational / Storage Temp | 0~40℃ ≤80%RH / -15~70℃ ≤80%RH |
| Physical | Size (W*D*H) / weight | 219*95*300 mm / 4.5kg |
