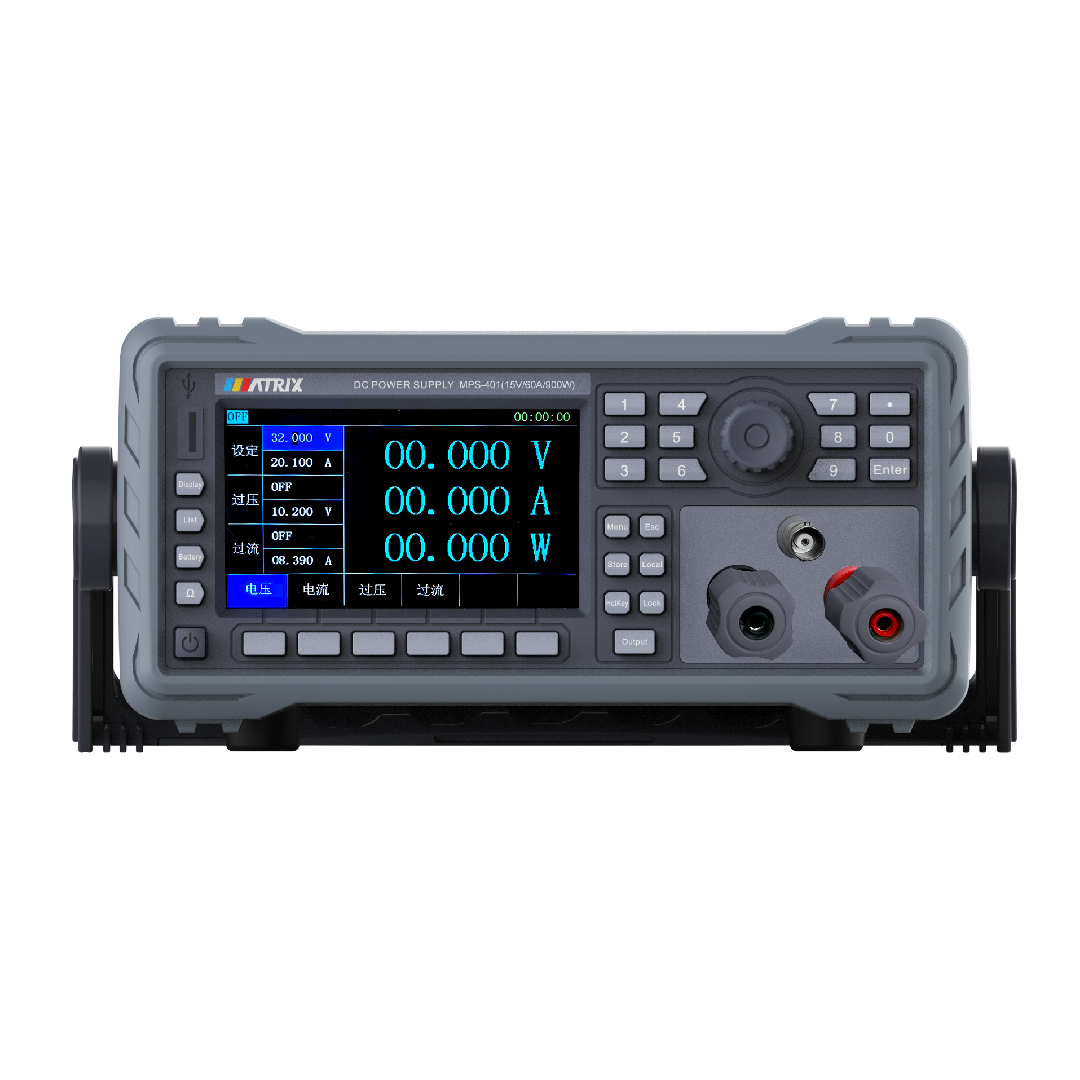

MPS-400Programmable Switching DC Power Supply
- Voltage range: 0 – 150V, current range: 0 – 60A, power: 0 – 900W
- Voltage compensation function ensures high precision
- Resistance Test
- Rising slope setting
- List sequence output
Want a custom configuration?
The newly launched MPS-400 Series Single-Channel DC Power Supply offers diverse models. Voltage ranges from 0-15V to 0-150V, current from 0-3A to 0-60A, power from 450W to 900W. It uses a switching power supply, ensuring high precision with features such as 1mV voltage and 1mA current display resolution, resistance test, voltage compensation, rising slope setting, list sequence output, key locking, and CC/CV priority. With good environmental adaptability, it’s reliable for various power applications.
| Model | Voltage | Current | Power |
|---|---|---|---|
| MPS-401 | 0~15V | 0~60A | 900W |
| MPS-402 | 0~20V | 0~30A | 600W |
| MPS-403 | 0~20V | 0~45A | 900W |
| MPS-404 | 0~30V | 0~20A | 600W |
| MPS-405 | 0~30V | 0~30A | 900W |
| MPS-406 | 0~60V | 0~10A | 600W |
| MPS-407 | 0~60V | 0~15A | 900W |
| MPS-408 | 0~80V | 0~6A | 480W |
| MPS-409 | 0~80V | 0~11A | 880W |
| MPS-410 | 0~150V | 0~3A | 450W |
| MPS-411 | 0~150V | 0~6A | 900W |
| Base Specs | Rated input voltage | AC 220V±10% |
| Voltage transformation method | Switch power supply | |
| Regulation | Load regulation rate | Voltage: ≤0.1%+20mV | Current: ≤0.1%+5mA |
| Power regulation rate | Voltage: ≤0.1%+20mV | Current: ≤0.1%+5mA | |
| Resolution | Set value resolution | Voltage: 1mV | Current: 1mA |
| Read back value resolution | Voltage: 1mV | Current: 1mA | |
| Accuracy | Set value accuracy | Voltage: ≤0.1%+10mV | Current: ≤0.3%+10mA |
| Read back value accuracy | Voltage: ≤0.1%+10mV | Current: ≤0.3%+10mA | |
| Environment | Operating Temperature | 0 to 40℃, ≤ 85% R.H. |
| Storage Temperature | -15 to 70℃, ≤ 85% R.H. | |
| Physical | Size (W * H * D) | 230 * 110 * 408 mm |
| Net weight | 4.5 kg |
