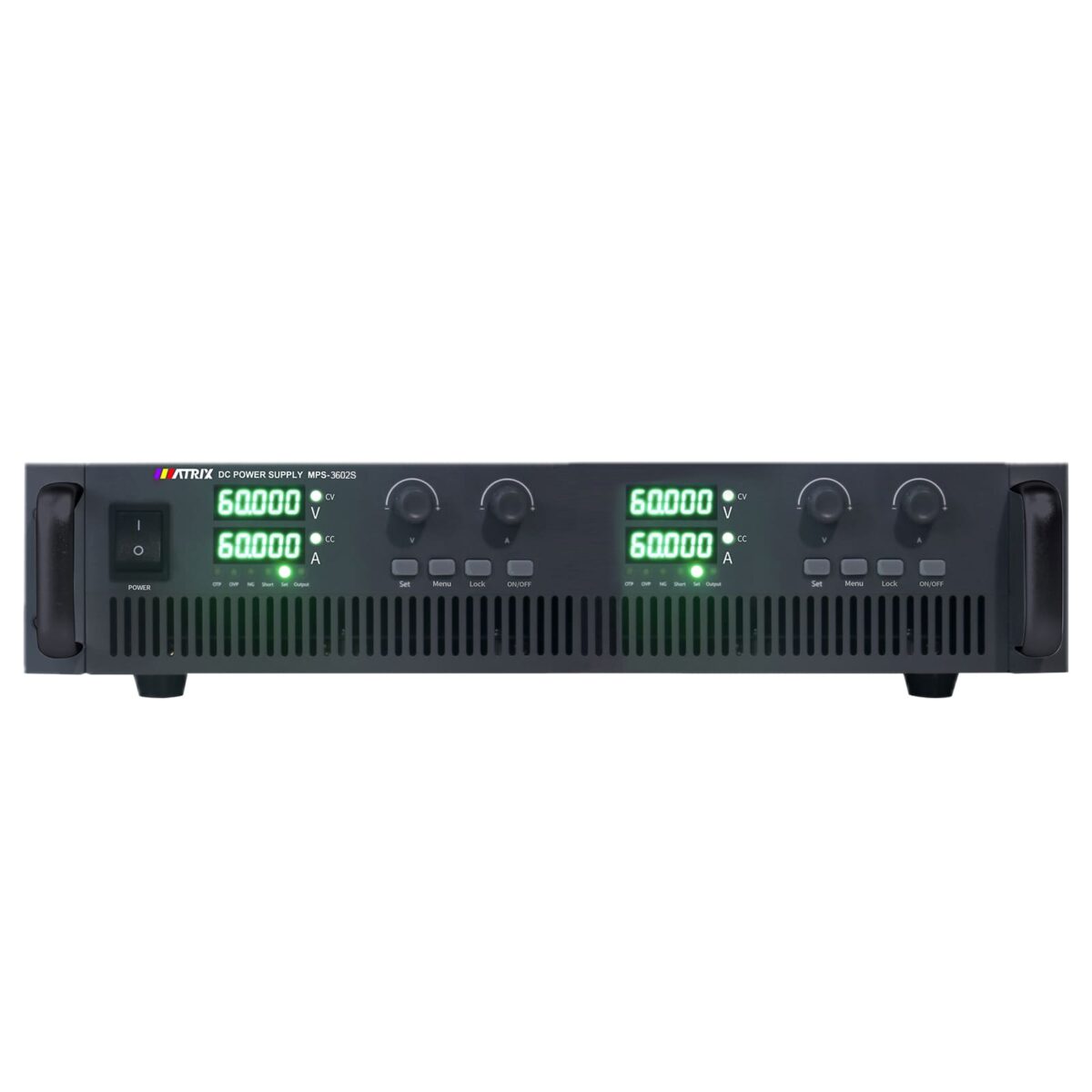

MPS-3602SSeries Programmable DC Power Supply
- Output voltage: 0–600V, output current: 0–120A, designed with dual-channel output
- Simultaneous five digit display of voltage and current, precise and easy to use
- Adopting PWM modulation and high gain amplification circuit design, stable and reliable
- The panel has preset buttons that can preset voltage and current values
- Key components are imported to ensure long-term full load operation
Want a custom configuration?
The MPS-3602S Series are dual-channel high-power DC power supplies, covering models like MPS-3602S-30-120 and MPS-3602S-60-60. Each channel offers 0-30V to 0-600V voltage, 0-120A to 0-6A current, with single-channel power of 3600W (total power: 3600W×2). Using PWM modulation and high-gain amplifiers, they feature a 5-digit display, preset buttons, and independent dual-channel control. Full protections and a keypad lock ensure safety; imported components guarantee full-load reliability. Remote voltage compensation is supported, with standard RS-232/RS-485/SENSE interfaces and optional analog interfaces. Input: Single-phase AC220V±10% (50Hz). Ripple: ≤0.2% FS+50mVrms; dynamic response: ≤5ms. Dimensions: 430×400×88mm; weight: 15KG. Suitable for multi-channel high-power testing and dual industrial equipment. Includes intelligent temperature-controlled cooling, efficient radiators, and parameter memory.
| Model | Voltage | Current | Power |
|---|---|---|---|
| MPS-3602S-30-120 | 0-30.000V | 0-120.00A | 3600W*2 |
| MPS-3602S-60-60 | 0-60.000V | 0-60.000A | 3600W*2 |
| MPS-3602S-100-36 | 0-100.00V | 0-36.000A | 3600W*2 |
| MPS-3602S-150-24 | 0-150.00V | 0-24.000A | 3600W*2 |
| MPS-3602S-200-18 | 0-200.00V | 0-18.000A | 3600W*2 |
| MPS-3602S-300-12 | 0-300.00V | 0-12.000A | 3600W*2 |
| MPS-3602S-600-6 | 0-600.00V | 0-6.0000A | 3600W*2 |
| Base Specification | AC input | Single phase AC220V±10%，50Hz |
| Regulation | Load regulation | Voltage: ≤0.1%F.S+0.1%F.S | Current: ≤0.1%F.S+0.1%F.S |
| Accuracy | Setting / Readback value | Voltage&Current ≤0.1%F.S+0.1%F.S |
| Signal Integrity | Ripple (20Hz-20MHz) | Vrms ≤ 0.2%F.S+50mV |
| Dynamic response time | ≤5mS (10%-90% load) | |
| Display | Display method / resolution | 4 1/2 digit LED / V: 0.001V-0.1V, I: 0.001A-0.1A |
| Physical | Heat dissipation | PWM speed regulating fan, air-cooled |
| Size (W*D*H) / Weight | 430×400×88 mm / 15KG |
